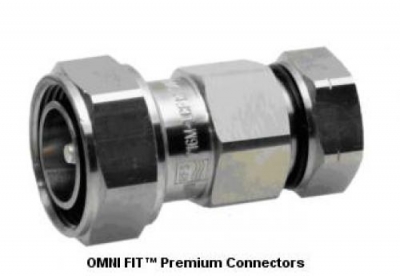

7-16 DIN Male Connector for 1/2" Coaxial Cable, OMNI FIT™ Premium,
Straight, O-Ring and compression sealing

Product Description
OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing against outer conductor and jacket by means of O-Ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

Features/Benefits
• Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
• Two-piece design i.e. visual inspection of interlocking leads to improved installation security
• OMNI FIT™ concept i.e. streamlined order management and reduced stock level
• Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
• Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
• Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
• RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis

Technical Features
Transmission Line Type Coaxial Cable
Cable Size 1/2"
Cable Type Foam Dielectric
Mating Interface 7-16 DIN
Connector Type OMNI FIT™ PREMIUM Straight
Sealing Method O-Ring + 360° Compression
Gender Male
Plating Outer/Inner NiTin
Length, mm (in) 55.8 (2.20)
Outer Diameter, mm (in) 32.0 (1.26)
Weight, kg (lb) 0.14 (0.32)
Inner Contact Attachment Basket
Outer Contact Attachment 360° clamping
3rd Order IM Product @ 2x20 Watts, dBc -163 ; typical -167
Maximum Frequency, GHz 3.7
VSWR (Return Loss) for DC < f ≤ 1.0GHz 1.02:1 (40.0 dB)
VSWR (Return Loss) for 1.0 < f ≤ 2.7GHz 1.03:1 (36.6 dB)
VSWR (Return Loss) for 2.7 < f ≤ 3.7GHz 1.06:1 (30.7 dB)
Wrench size front, mm (in) 26
Wrench size rear, mm (in) 26
Trimming Tool TRIM-12-L
TRIM-LCF12-D01-A
Waterproof Level IP68
