FM-1000W POSTEL

FM-1000W POSTEL
Klik pada gambar untuk memperbesar
Harga
Rp 35.000.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli FM-1000W POSTEL

Lebih Lengkap Mengenai FM-1000W POSTEL

PEMANCAR FM

Description :
Ready Stock
Barang Baru

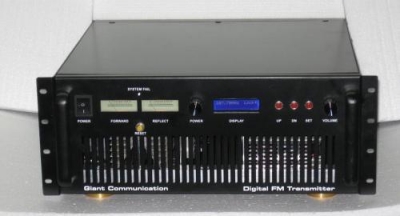

PEMANCAR FM 1000 Watt


FM-1000W

The FM-1000W sstem is ultra compact size, extremely high effieciency, fully solid state FM transmitter of 1000 Watt rated power. With advance selft protection and full digital front panel control features, advanced FM transmitting Technology.
Our new Gcom FM-1000W is a state of art 1000 Watt FM transmitter offers excellent performance while keeping cost effective and easy of use.
Gcom FM-1000W is using 1200 Watt Moster system, that only running 80% from 1000W after low pass filter, Continuous power for 24 hours operation.

INTEGRATED INFORMATION DISPLAY AND PROTECTION CONTROLS

- Integrated display page for all transmitter parameter.
- Full protection for malfunction like Reflected power and over temperature.
- Healt Monitoring and protection of individual PA module and Power Supply Module
- Simplified control from front panel.



SPECIFICATION :


Frequency : 88–108 Mhz Broadband Design
Frequency Step : 100 Khz
RF Power : 0 – 1000 Watt , 850Watt Con.
PA Board Efficiency : 70%
PSU Efficiency : 90%
VSWR Protection :2:1 ( adjustable )
Distortion : 0.02%
Modulation : Direct FM
Harmonic Output : <70 dbc
Spurious Output : -86dbc
stereo separation : 45dB
Audio System : Stereo
Audio Input Level : 0.2 V
Audio Response : 1Hz-100kHz

Dimension : Standard 19” 480x460x190mm




Weight : 25 kg
