Andrew 75AR Build Up

Andrew 75AR Build Up
Klik pada gambar untuk memperbesar
Harga
Rp 3.000.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Andrew 75AR Build Up

Lebih Lengkap Mengenai Andrew 75AR Build Up

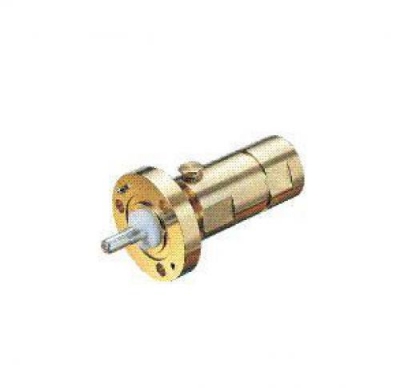

7/8 in EIA Male Flange without gas barrier for 7/8 in HJ5-50 air dielectric cable

General Specifications
Interface 7/8 in EIA Male Flange
Body Style Straight
Brand HELIAX®
Gas Barrier No
Mounting Angle Straight

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 5200 MHz
Cable Impedance 50 ohm
RF Operating Voltage, maximum (vrms) 2121.00 V
dc Test Voltage 6 kV
Insulation Resistance, minimum 5000 MOhm
Average Power 3.5 kW @ 900 MHz
Peak Power, maximum 90.00 kW
Insertion Loss, typical 0.05 dB

Mechanical Specifications
Outer Contact Attachment Method Tab-flare
Inner Contact Attachment Method Self-tapping
Inner Contact Plating Silver
Interface Durability 50 cycles
Interface Durability Method MIL-C-39012, Section 4.6.12

Dimensions
Nominal Size 7/8 in
Diameter 57.56 mm | 2.27 in
Length 88.90 mm | 3.50 in
Weight 0.57 kg | 1.26 lb

Environmental Specifications
Operating Temperature -40 °C to +150 °C (-40 °F to +302 °F)
Storage Temperature -70 °C to +100 °C (-94 °F to +212 °F)
Moisture Resistance Test Method MIL-STD-202, Method 106
Mechanical Shock Test Method MIL-STD-202, Method 213, Test Condition I
Thermal Shock Test Method MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C
Vibration Test Method MIL-STD-202, Method 204, Test Condition B
Corrosion Test Method MIL-STD-202, Method 101, Test Condition B

Return Loss/VSWR
Frequency Band VSWR Return Loss (dB)
0–1000 MHz 1.03 36.00
1000–2000 MHz 1.07 29.00
