RFS 718M-LCF114-072

RFS 718M-LCF114-072
Klik pada gambar untuk memperbesar
Harga
Rp 225.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli RFS 718M-LCF114-072

Lebih Lengkap Mengenai RFS 718M-LCF114-072

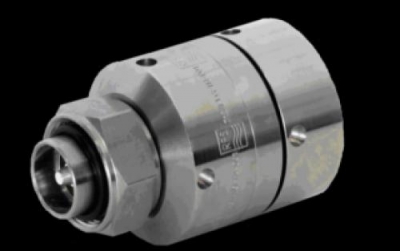

7-16 DIN Male Connector for 1-1/4" Coaxial Cable, OMNI FIT™ Premium,
Straight, O-Ring and compression sealing



716M-LCF114-D01
718M-LCF114-072

Product Description

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing against outer conductor and jacket by means of O-Ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

Features/Benefits

• Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction

• Two-piece design i.e. visual inspection of interlocking leads to improved installation security

• OMNI FIT™ concept i.e. streamlined order management and reduced stock level

• Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation

• Unique NiTin plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances

• Multi-thread (Tristart) design i.e. simplified and accelerated tightening process

• RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis


Technical Features

Transmission Line Type Coaxial Cable
Cable Size 1-1/4"
Cable Type Foam Dielectric
Mating Interface 7-16 DIN
Connector Type OMNI FIT™ PREMIUM Straight
Sealing Method O-Ring + 360° Compression
Gender Male
Plating Outer/Inner NiTin
Length, mm (in) 75.25 (2.96)
Outer Diameter, mm (in) 49.5 (1.95)
Weight, kg (lb) 0.35 (0.78)
Inner Contact Attachment Spring Finger
Outer Contact Attachment 360° clamping
3rd Order IM Product @ 2x20 Watts, dBc -163 ; typical -167
Maximum Frequency, GHz 3.6
VSWR (Return Loss) for DC < f ≤ 1.0GHz 1.02:1 (40.0 dB)
VSWR (Return Loss) for 1.0 < f ≤ 2.2GHz 1.04:1 (34.1 dB)
VSWR (Return Loss) for 2.2 < f ≤ 2.7GHz 1.06:1 (30.7 dB)
VSWR (Return Loss) for 2.7 < f ≤ 3.7GHz 1.08:1 (28.3 dB)
Wrench size front, mm (in) Poly Hook Spanner PHS 60-90-5
Wrench size rear, mm (in) Poly Hook Spanner PHS 60-90-5
Trimming Tool TRIM-C114-C12
TRIM-LCF114-D01-A
Waterproof Level IP68
