Dipole Tipe V

Dipole Tipe V
Klik pada gambar untuk memperbesar
Harga
Rp 375.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Dipole Tipe V

Lebih Lengkap Mengenai Dipole Tipe V

Barang Baru
Ready Stock

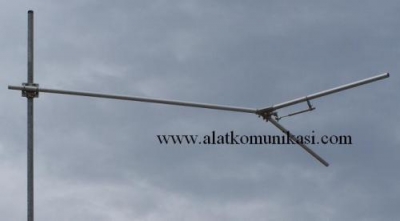

V-Type Dipole

This V-Type Dipole antenna constructed with a grade aluminum with coating to stand for long time period operation in any weather condition for any country in the world. We use a Quality matching to support up to 1200 watt input power. This antenna could be use for vertical polarization or Horizontal polarization, with easy to assembly design making this antenna a great choice for beginner to expert



TECHNICAL SPECIFICATIONS

Antenna type V-Type dipole
Frequency range 87.5 - 108 MHz
Bandwidth 2 MHz
Impedance 50 Ohms
Connectors SO-239 , N-type only for request
Power rating 1200 Watt Max
VSWR < 1.2:1
Polarization Vertical / Horizontal
Gain 2.15 dBi
H plane 180 degrees
V plane 65 degrees
Front-to-back ratio 7 dB
Lightning protection ALL Parts GROUNDED
Max wind velocity 200 km/h
Wind load 19.5 kg
Wind surface 0.12 yd2 (0.11 m2)
Materials (external) Thick Alumunium
Mounting from 2" to 4"
Weight 2 kg
Dimensions 1500x850x70 mm)
