Booster VHF 2m 85 Watt

Lebih Lengkap Mengenai Booster VHF 2m 85 Watt

Barang Baru
Ready Stock

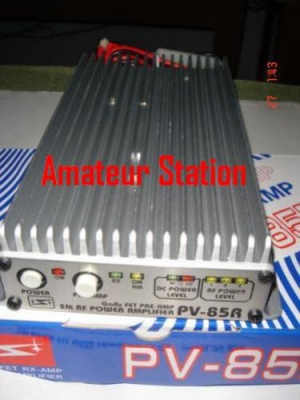

Booster VHF 2m 85 Watt


85R is a high power linear amplifier designed for the 144Mhz Band operation. It boasts of maximum output power of 85W. with a combination of built-in LOW NOISE GaAs fet receive Pre-Amp.
85R enables you to enjoy a more comfortable VHF DX QSO both on mobile and at home station.

• POWER LEVEL LED
You can observe the output power and check the power level at all times. An accurate output power can be read with a built-inprecision directional coupler of micro strip line.

• SPURIOUS
A low Spurious signal emission (60dB Min.Down) with an effective output low pass filter.

• SPECIFICATION
o FREQUENCY : 144MHz Band
o DC Power : DC 12V-16V
o Output Power : 80Watt (90W Max)
o I/O impedance : 50 Ohms
o Pre-Amp Gain/NF : 12 dB UP/NF 1.5dB
o Mode : FM
o Power Consumption : 17A ( Max)
o RF Input Power : 3W (1-5W Max)
o I/O Connector : M Type
