AEA 140-545 Antenna SWR Analyzer

AEA 140-545 Antenna SWR Analyzer
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli AEA 140-545 Antenna SWR Analyzer

Lebih Lengkap Mengenai AEA 140-545 Antenna SWR Analyzer

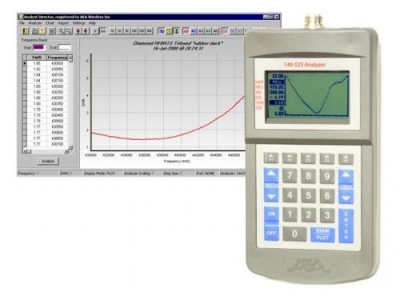

AEA Technology 140-545 Antenna SWR Analyzer

SEE where your antenna is resonant... Instantly and without question!

AEA’s 140-525 Analyzer operates in the UHF/VHF bands and has a frequency range of 135 -525 MHz. The 140-525 provides graphical plots of VSWR and Return Loss, numerical results, and plot storage.

AEA Technology's 140-525 Analyzer is a graphical antenna analyzer covering 135 to 525 MHz that speeds visualization of VSWR and Return Loss plots. The onscreen plot allows you to quickly determine the best match frequency and the 2:1 bandwidth points. 140-525 has 15 memories for plot storage and a relative Field Strength meter to determine if there is excessive RF in the testing area.

At 20 ounces, the 140-525 Analyzer is light weight and easily hand held. With the Analyst Director Software (Windows 95/98/2000/ME/XP compatible) to interface with your PC, you have endless curve storage and printout capability.

The 140-525 and its software is a powerful, yet cost effective, VHF/UHF testing tool set that should be in every Engineer/Technicians tool box.

FEATURES:

* Simultaneous multiple plot viewing in memory mode.
* SuperTwist display for better contrast and viewing angles.
* Storage for 15 plots.
* Signal generator mode.
* Self Test and calibration functions
* Return Loss and VSWR modes.
* Relative Field strength measurements.
* Optional Windows™ Analyst Director Software
* Plot transfer between PC and 140-525.
* Non-volatile memory
* Compatible with NiMH and NiCd batteries.
* Battery Saver auto-off and auto-hold functions
* Auto Scaling.
* Auditory cues.

SPECIFICATIONS:

*
Range: 135 to 525 MHz
*
Display Resolutions: Increments of 10 KHz
*
Measurement speed: Single frequency: Several sweeps per second / Normal sweep: less than 2 seconds
*
Frequency display width: 0 to 500 MHz
*
Impedance Range: 50 Ohms
*
Harmonic and spurious: greater than 40 dB below fundamental
*
Output power: greater than +5 dBm@ 50 ohms
*
Serial interface speeds: 9600 to 19.2K baud
*
Power requirements: 12 - 16 VDC @ less than 250 ma or 8 AA batteries (Alkaline or NiMH)
*
Antenna connector: Industry standard `N` connector
*
Size: 8.5 inch x 4.3 inch x 2.25 inch
*
Weight: 20 oz.
*
Memory: Store 15 plots
*
Display: 0 to 500 MHz
*
Communications: Serial Port
*
Internal Power: 8 AA Alkaline, NiMH or NiCd batteries (optional)
*
External Power: 90-240 VAC, 50-60Hz wall adapter (optional)
