Coaxial Switch bisa utk 5kW

Coaxial Switch bisa utk 5kW
Klik pada gambar untuk memperbesar
Harga
Rp 550.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Coaxial Switch bisa utk 5kW

Lebih Lengkap Mengenai Coaxial Switch bisa utk 5kW

Brand New

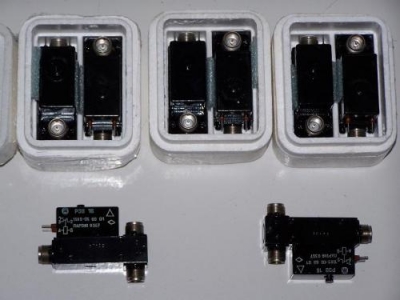

Coaxial Switch Buatan Russia,


frequency : DC-900 MHz

Bisa Dipakai utk : 1.000.000 = 1 juta kali

Direct resistance of contacts: 0,01 Ohm max

Resistance of insulation: 200,0 Mega Ohm

REW-16 Russian coaxial relays is much Power (really work up to 5-7kW with 144 MHz EME PA)

Dimensions: 82x63x28 mm

Specifications:

RF Impedance: 50 Ohms

Coil Voltage:
Pull in: 12.5 VDc - 17.5 VDc
Drop out: 2.0 VDc


Switching Time:
Pull in: 20 ms maximum
Drop out: 10 ms maximum
Life Expectancy: 1,000,000. Operations min.

Mechanical
Contact arrangement: SPDT
Operational temperature: -60 to +100 degrees C.
Weight: 220 grams (7.8 oz)
Mounting: 2-3screws
Cable connections: 3 x SR-50 series Russian Type coaxial connectors
