Comet Duplexer

Comet Duplexer
Klik pada gambar untuk memperbesar
Harga
Rp 350.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Comet Duplexer

Lebih Lengkap Mengenai Comet Duplexer

Barang Baru
Ready Stock

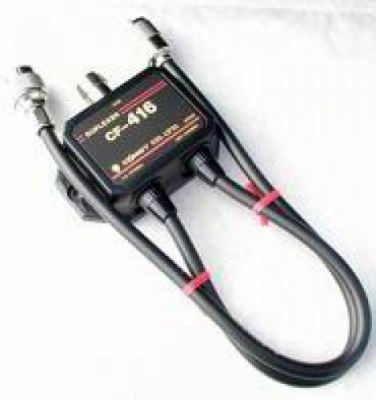

Comet CF.416 144/430Mhz Duplexer

Comet CF-416: 144/430Mhz
Model CF-416 Duplexer for transmitting and receiving the 144 (or HF/50Mhz) and 433Mhz at the same time.
Combined high grade filters work for preventing TVI at the same time.
In the case of using the CF-416 for one frequency, the other end can remain open, although the use of a dummy load would be preferred.

Features :
• BandPass Frequency & Input Loss : 1.3 - 170Mhz / Less than 0.15dB
• BandPass Frequency & Input Loss : 350 - 540Mhz / Less than 0.25dB
• Impedance : 50 Ohms
• VSWR : Less than 1:1.2
• Maximum Input Power : 1.3 - 60Mhz / 1000Watts (PEP)
• Maximum Input Power : 100 - 170Mhz / 800Watts (PEP)
• Maximum Input Power : 350 - 540Mhz / 500Watts (PEP)
• Input 1 x SO239 Socket
• Output 2 x Leads with Fitted PL259
