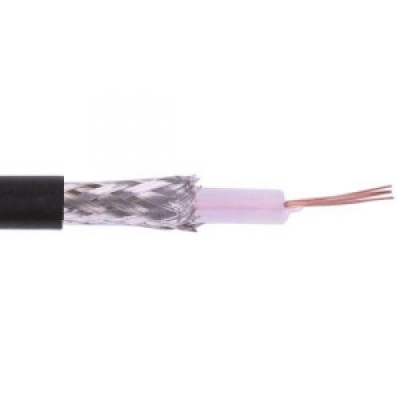

Belden 8218, 75 Ohm

Lebih Lengkap Mengenai Belden 8218, 75 Ohm

Barang Baru
REady Stock

Harga per meter = Rp. 25 ribu


CONDUCTOR:
Number of Coax 1
Total Number of Conductors 1
AWG 27
Stranding 7x35
Conductor Diameter .017 in.
Conductor Material BCCS - Bare Copper Covered Steel

INSULATION:
Insulation Material PE - Polyethylene
Insulation Diameter .100 in.

OUTER SHIELD:

Outer Shield Type Braid
Outer Shield Material TC - Tinned Copper
Outer Shield o;verage 93 %

OUTER JACKET:

Outer Jacket Material PVC - Polyvinyl Chloride
OVERALL NOMINAL DIAMETER:
Overall Nominal Diameter .150 in.



MECHANICAL CHARACTERISTICS:

Operating Temperature Range -40°C To +60°C
UL Temperature Rating 60°C (UL AWM Style 1354)
Bulk Cable Weight 14 lbs/1000 ft.
Max. Recommended Pulling Tension 32 lbs.
Min. Bend Radius (Install) 2 in.
