RYMSA Antenna

RYMSA Antenna
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli RYMSA Antenna

Lebih Lengkap Mengenai RYMSA Antenna

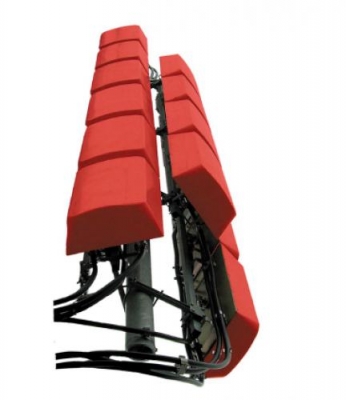

Band IV/V Horizontal Polarization Panel
Especially suitable for Square Masts
Model: AT15-250


4 Panal Antenna Rymsa


Electrical Specifications

Frequency range 470-862 MHz
Peak gain 11.35 dB (ref. l/2 dipole)
3 dB beam width E-plane: 61º H-plane: 26º
Polarization Horizontal
Impedance 50 Ohm
VSWR £ 1.1:1 typical (1.15:1 max)

Maximum power handling peak sync 1.4 KW 3.5 KW 4.2 KW 6.5 KW
Maximum power handling RMS 1 KW 2.5 KW 3 KW 4.5 KW
Connector type DIN 7/16 EIA 7/8” DIN 13/30 EIA 1 5/8”
Pressurization Non
pressurized Gas barrier on input connector
