Dummy Load Bird 25-T-MN

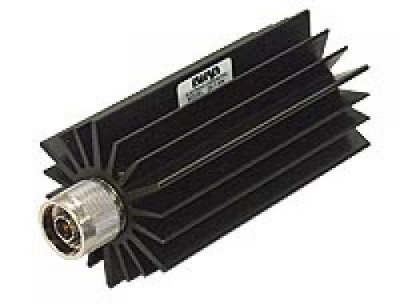

Dummy Load Bird 25-T-MN
Klik pada gambar untuk memperbesar
Harga
Rp 975.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Dummy Load Bird 25-T-MN

Lebih Lengkap Mengenai Dummy Load Bird 25-T-MN

25 Watt, Convection-Cooled Dry Terminations
Termaline® RF Coaxial Terminations
Bird's RF terminations are world renowned for their high-quailty, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI. Model 20-T-MN is rated to 10 GHz and 20 Watts.
For Aluminum Nitride (BeO free) see model 25-NT-MN.

* Wide variety of connectors
* Rugged Reliability provides years of trouble free use
* Compact size, easily transportable
* Optional model available for 20 Watts and 10 GHz

Specifications

Power Rating (Watts) 25
Frequency Range and VSWR DC - 1 GHz @ 1.10:1 max.
1 GHz - 4 GHz @ 1.25:1 max.

Product Type Dry (Convection-Cooled)
Ambient Temp Range [°C (°F)] -40°C to +40°C
Operating Position Any
Connector(s) N-Type, BNC, TNC, SMA, 7/16 DIN
Finish Black Anodized, Silver or Tri-Alloy Plated Connectors
Nominal Size [inches (mm)] 4.7" L x 2.3: Dia. (with N-type connector)
(119.4mm x 58.5 mm)
Weight [oz. (g)] 10.07 oz. (305 g)
