Andrew CA-TNRNF

Andrew CA-TNRNF
Klik pada gambar untuk memperbesar
Harga
Rp 175.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Andrew CA-TNRNF

Lebih Lengkap Mengenai Andrew CA-TNRNF

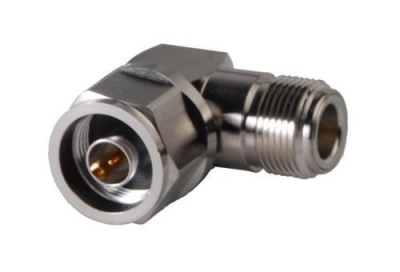

Type N Male to Type N Female Right Angle Adapter


General Specifications
Interface N Male
Interface 2 N Female
Body Style Right angle
Mounting Angle Right angle

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 3000 MHz
RF Operating Voltage, maximum (vrms) 707.00 V
dc Test Voltage 2500 V
Outer Contact Resistance, maximum 0.25 mOhm
Inner Contact Resistance, maximum 1.00 mOhm
Insulation Resistance, minimum 5000 MOhm
Average Power 600.0 W @ 900 MHz
Peak Power, maximum 10.00 kW

Mechanical Specifications
Coupling Nut Proof Torque 1.70 N-m | 1.25 ft lb
Coupling Nut Proof Torque Method IEC 61169-16:9.3.6
Coupling Nut Retention Force 450.00 N | 101.16 lbf
Coupling Nut Retention Force Method IEC 61169-16:9.3.11
Inner Contact Plating Gold
Insertion Force 28.00 N | 6.29 lbf
Insertion Force Method IEC 61169-16:9.3.5
Interface Durability 500 cycles
Interface Durability Method IEC 61169-16:9.5
Outer Contact Plating Trimetal
Pressurizable No

Dimensions
Diameter 22.35 mm | 0.88 in
Length 37.78 mm | 1.49 in
Weight 73.87 g | 0.16 lb
Width 32.55 mm | 1.28 in

Environmental Specifications
Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Mechanical Shock Test Method IEC 60068-2-27
Climatic Sequence Test Method IEC 60068-1
Damp Heat Steady State Test Method IEC 60068-2-3
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6
Corrosion Test Method IEC 60068-2-11

Standard Conditions
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F

Return Loss
Frequency Band VSWR Return Loss (dB)
0–3000 MHz 1.04 33.94
3000–6000 MHz 1.19 21.19
