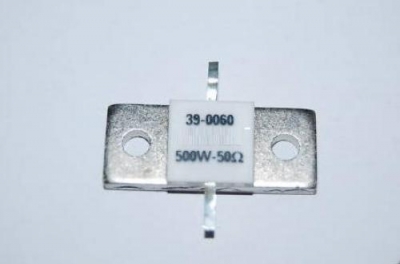

Resistor 500W 50 Ohm

Resistor 500W 50 Ohm
Klik pada gambar untuk memperbesar
Rp 950.000,00
1 gram
Dimensi Produk
Ketersediaan Barang
Beli Resistor 500W 50 Ohm

Lebih Lengkap Mengenai Resistor 500W 50 Ohm

hybrid 50 ohm terminating load resistors rated at 500 watts continuous power dissipation when installed on an appropriate heat sink.
It is a solder in type part with no RF connectors, and 1500 watts PEP for short periods.
They measures approximately 2 inch long x 1 inch wide x .25 inch high and are rated up to 1000 mHz with a VSWR of less than 1.3.
For pulse operation, the part is rated at 5000 watts for 1% duty cycle and pulses less than 100 microseconds. These parts are good to build your own load or for terminating isolator circuits on RF amplifiers.
