RG-142

RG-142
Klik pada gambar untuk memperbesar
Harga
Rp 125.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli RG-142

Lebih Lengkap Mengenai RG-142

Barang Baru
Ready Stock

TEFLON RG-142

Harga Rp 125,000 / Meter

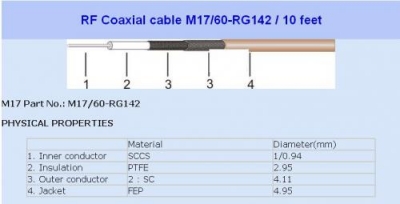

PHYSICAL PROPERTIES

Material Diameter(mm)
1. Inner conductor SCCS 1/0.94
2. Insulation PTFE 2.95
3. Outer conductor 2 : SC 4.11
4. Jacket FEP 4.95

ELECTRICAL PROPERTIES
Nom. Capacitance Conductor to Shield(pF/m) 96.5
Nom. Characteristic Impedance(ohm) 50
Nom. Velocity of Propagation(%) 69.5
Min. Bend Radius(Install)(mm) 25
Voltage Rating(VMS) 1900
Max. Operating Frequency(MHz) 8000
Operating Temperature Rating(°C) -55~+200

Nom. Attenuation
Frequency(MHz) Nom. Attenuation(≯dB/m)
100 0.125
400 0.256
1000 0.420
3000 0.781
5000 1.050
