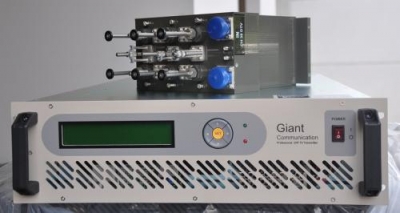

300W DVB-T/H/T2 Transmitter

Lebih Lengkap Mengenai 300W DVB-T/H/T2 Transmitter

Digital 300 Watt

Giant Communication DVB-300W
High performance
Pemancar TV Digital
300W DVB-T/H/T2 Transmitter

DVB-T2 Indonesia


Key Features
- 470-862 MHz
- Pout : 300Wrms DVB-T
- Gain : 60dB
- Fully digital front panel controls
- Easy operation with auto gain control
- Force AIR cooling
- Temperature compensated BIAS
- Lightweight / compact size
- Fully compliant with DVB-T / DVB-T2 standard
- Support Mode A, Mode B and Multi-PLP
- 2xASI inputs, 1xGigabit Ethernet IP input with, optional satellite input
- Support 1k, 2k, 4k, 8k , 16k , 32k FFT modes
- Guard Interval: 1/4, 1/8, 1/16, 1/32,1/128,19/128,19/256
- Rotated constellation: 29°, 16.8°, 8.6°, 16.8°, Antan(1/ 16°)
- FEC: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
- Constellation: QPSK, 16QAM, 64QAM, 256QAM
- Advanced DVB-T2 features: MFN/SFN, MultiPLP, SISO/MISO, T2-Lite
- Channel Bandwidth: 5MHz, 6MHz, 7MHz, 8MHz
- High performance RF feature with MER>40dB
- External 1pps and 10MHz Clock inputs
- Onboard GPS or GPS/Glonass (Option)
- Powerful Linear and non linear correction
- Digital Adaptive Precorrection (Option)
- IP remote control and RS232 serial control
- Native redundant IP streaming inputs
