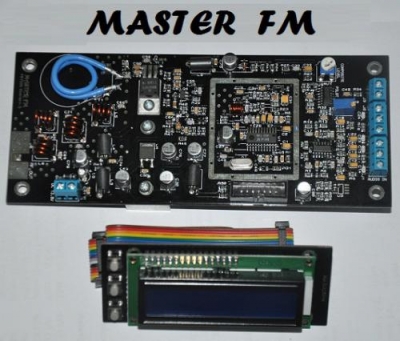

Master FM ST5000MW

Master FM ST5000MW
Klik pada gambar untuk memperbesar
Rp 800.000,00
1 gram
Dimensi Produk
Ketersediaan Barang
Beli Master FM ST5000MW

Lebih Lengkap Mengenai Master FM ST5000MW

Ready Stock
Barang Baru

beli 1 = @800 ribu
beli 5 = @750 ribu
beli 10 = @700 ribu
beli 20 = @650 ribu

Sudah Dilengkapi dengan STEREO Board

Master FM

5W FM Stereo broadcasting Transmitter

The Return of MASTER FM is a Combination between Stereo and transmitter integrated system.
it contains Stereo module and PLL exciter plus 5 watt booster.
it has additional feature of Mono and stereo software inside the the LCD.
this system has high efficiency compact module board, and improved silent cooling with cooling basplate.

Master FM design is the equivalent of over hundreds of hours and many months with research and development project,
with capability of our enginering team, we finally build, the true MASTER FM.

Technical specifications:
- RF Output Power: 5 Watts
- Output connector: Socket
- Output Impedance: 50 Ohms
- Frequency Range: 87.5-108MHz
- PLL Steps: 100KHz
- Frequency stability: +/- 100Hz
- Spurious/Harmonic rejection: Harmonics: >50dB, Spurious: -90dB
- Power Supply: 11-15V/3A or car battery (does not require 15V anymore)
- Power connector: power socket
- Quartz Locked PLL Frequency Control
- Ultra Stable, Ultra Clean Output
- Audio performance: Less than 0.2% distortion, 20Hz-75KHz
- RF output ruggedness: RD06 mosfet
- Polarity protection, DC Proctection
- integrated Stereo encoder system
- Analog stereo encoder
- Audio Response: 10Hz-15KHz,
- Greatly improved stereo separation due to new digital MPX multiplex circuit
- solid-state LC analog filters
- Audio Input Impedance: balanced
- Audio Input Level: 0 dB
- S/N ratio: >90 dB
- Power connector: solder pads
