DJ-195 / DJ-196

Lebih Lengkap Mengenai DJ-195 / DJ-196

READY STOCK
Barang Baru

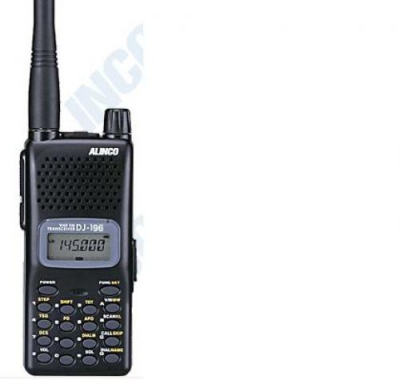

Alinco DJ-195T/196T 2 Meter HT
Power, features, convenience and fun!

Alinco has created a new 2 meter HT that sets new standards in features, convenience and easy operation. The DJ-195/196 sports an alphanumeric display for easy memory management. It has an ergonomic design that's "user friendly" and the 5 watt output battery is standard. You'll be ready to travel the world with CTCSS encode+decode, DCS and European tone bursts, all included at no extra cost. Best of all, the DJ-195/196 retains the proud Alinco tradition of quality construction and excellent value.

• Alphanumeric display
• 40 memory channels
• 5 watt output with standard battery
• CTCSS encode+decode and DCS
• 13.8 VDC direct input with battery charge feature
• Direct frequency input
• S-meter
• Autodialer
• Cable Cloning
• Computer programmable (third party software required)
• MARS/CAP capability (DJ-195T/196T)
• Additional features, including theft alarm!
• Back-lit keypad (DJ-196T Only)

Alinco DJ-195T/196T 2 Meter HT
Alphanumeric Display Label channels in an easy-reading format. Display frequency, alpha label or channel number only.
40 Memory Channels Plenty of room to store your favorite simplex or repeater frequencies along with alphanumeric label, offset, CTCSS encode/decode or DCS setting.
5 watts output The standard battery allows the DJ-195/196 to produce up to 5 watts. A power input port
Accepts 13.8 VDC and charges the battery, but won't allow destructive overcharge.

CTCSS, DCS, Tone Bursts and DTMF Be prepared for virtually any selective calling situation or gaining access to repeaters with protected inputs. European Tone Bursts include 1000, 1450, 1750 and 2100 Hz.
Direct Frequency Input Frequency entry is easy using the well-spaced keypad.
S-Meter Displays relative signal strength.
Cable Cloning Share identical settings among multiple DJ-195/196 transceivers. Saves time and ensures uniform operation.
Removal Alarm The DJ-195/196 can be set to emit a tone when disconnected from an external power source until proper action is taken to silence the alarm.
Experimental Insect Repel Feature Can the DJ-195/196 actually repel mosquitoes? Activate the special tone and decide for yourself! You may find the DJ-195/196 can "de-bug" your outdoor operating site!



SPECIFICATIONS

General DJ-195T/196T
Freq. RX original status 130 to 174 F2 F3 only
F2,F3,WFM


Freq. TX 144-147.995
F3

Freq. Stability +/-5ppm(-10 to +60c)
Antenna Imp. 50 ohm unbalanced
Supply Voltage DC 13.8V rated
DC 6.0min to 16V max
Ground Negative GND
Current consumption TX 5W 1.2A approx.
at 13.8V external source RX 200mA approx/300mW
RX squelched 50mA approx.
RX Batt.Save on 20mA app.
Operating Temp. range -10 to +60 degrees C.
Dimention w/o projection 56(W) x 124(H) x 40 (D)
Weight with drycellcase+cell N/a
and antenna



Transmitter
Output power 5W 13.8V or EBP48N
Low=0.5W
Modulation Variable reactance
Max. Deviation n/a
Spurious emission less than -60db
Microphone Imp. 2k ohms approx.

Receiver
Circuit Double superheterodyne
1st IF freq. 21.7Mhz
2nd IF freq. 450khz

Sensitivity 12db SINAD better than -8dbu
(0.2uV or less)


Selectivity except WFM more than -6db/12khz
less than -60db/28khz
Image/spurious response less than -60db
AF out at 10% distort.13.8V Max 300mW
AF impedance 8 ohms

Standard feature
Expandible RX range none
MARS/CAP mod. Yes
DTMF tone encode
DCS SQ enc/dec
CTCSS SQ Enc/Dec 39tones
Memory ch. 40ch non expandible
Auto Dialer memory memory 9 memories, max 16 characters/memory
Call channel Yes
