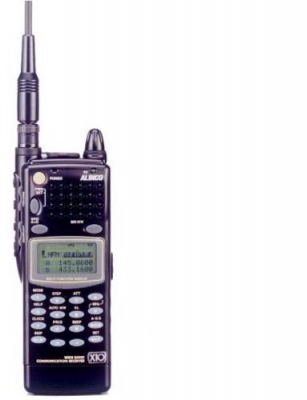

DJ-X10 2Ghz Receiver

Lebih Lengkap Mengenai DJ-X10 2Ghz Receiver

READY STOCK
Barang Baru

DJ-X10T SPECIFICATIONS

100KHz ~ 2000MHz ALL-MODE Communications Receiver

GENERAL

Frequency Coverage: 100KHz ~ 2000MHz (less cellular band on US version)

Mode: WFM, NFM, AM, CW, USB, LSB

Reveiver System: Triple Conversion Super-hterodyne

Channel Step: 50Hz, 100Hz, 1KHz, 2KHz, 5KHz, 6.25KHz, 9KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz, 100KHz, 125KHz, 150KHz, 200KHz, 250KHz, 500KHz, or Auto Steps
Memory Channels: 1200 Channels (40 channels X 30 banks)
Antenna Impedance: 50 Ohms unbalanced
Frequency Stability: Better than 10ppm (-10 ~ + 50 degrees C.)
Sensitivity: 0.1 ~ 0.5MHz / AM: 10uV (20dBu)

0.5 ~ 5MHz / AM: 1.5uV (3.5dBu), SSB/CW: 0.5uV (-6dBu)

5 ~ 30MHz / AM: 1uV (0dBu), SSB/CW: 0.25uV (-12dBu), NFM: 0.35uV (-9dBu)

30 ~ 1000MHz / AM: 1uV (0dBu), SSB/CW: 0.5uV (-6dBu), NFM: 0.5uV (-6dBu), WFM: 1.5uV (3.5dBu)

1000 ~ 1300MHz / SSB/CW: 1.5uV (3.5dBu), NFM: 1.5uV (3.5dBu)

1300 ~ 2000MHz / SSB/CW: 10uV (20dBu), NFM: 10uV (20dBu)

AM/SSB/CW: 10dB S/N. NFM/WFM: 12dB SINAD
Selectivity: SSB/CW: -6dB/4KHz or better
AM/NFM: -6dB 15KHz or better
WFM: -6dB 150KHz or better
I.F.: (1st) 736.25/275.45MHz
(2nd) 45.05MHz
(3rd) 455KHz/10.7MHz (WFM)
Power Supply Requirements: 4.8 ~ 13.8v DC
Current Consumption @ 13.8v DC: At normal AF output: 200mA, squelched: 140mA, squelched with battery saver ON: 30mA
Operating Temperature: -10 ~ +60 degrees C, 14 ~ 140 degrees F< /TD>
Dimensions (with EBP-37N without projections) : 57(W) x 150(H) x 27.5(D) mm 2-1/4"(W) x 6"(H) x 1-1/16"(D) inches
Weight: approx. 320g

Specifications subject to change without notice or obligation




Features:
Large, Illuminated display
User selectable or automatic mode and resolution settings
User selectable English or Japanese operating system
Dual VFO's
1200 EEPROM based non-volatile memories
40 segment "channel scope" spectrum display
Selectable 20dB attinuator
Internal clock
Help message menu system
Beginner/expert modes
3 line Alpha-numeric tag with text-edit
Multiple s-meter display modes
User selectable or automatic band plan
Automatic memory write capability
Multiple scanning modes
Scans 25 channels a second
Battery save function
Auto power on/off capabilty
Cable cloning function
DC jack for external power source.
Monitor key
PC programable and controlable in real time
Software will be available in most formats
