DR-435 70cm 35w

Lebih Lengkap Mengenai DR-435 70cm 35w

READY STOCK
BARANG BARU

A Monoband Legend Continues!

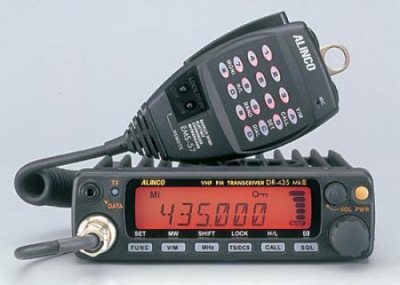

DR-435T/EMKIII 35W FM Mobile/Base unit

Features of DR-435T/EMKIII


Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
Voice-only FXE-version available (European model only, EJ-41U/47U not usable).
EJ-41U internal TNC board is available as an option for 1200/9600bps packet
35 watts, H/M/L power settings
100 memory channels
Front panel data port
Rear panel DSUB9 computer connection
No need to remove mic for packet operation
Ignition key on/off feature
CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
Clean, clear Alinco audio
Super-wide 7 character alphanumeric display
Wide and narrow FM modes (16K0 & 8K50F3E)
Theft alarm feature
A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
Stays in mode you select (voice/packet) through
power off cycles
Ten autodial memories
and more....at Low Alinco price!
Specifications
Genaral
Frequency range TX: 430.000 - 449.995 MHz
RX: 350.000 - 511.995MHz

Operating mode 16K0F3E (FM)/8K50F3E (Narrow-FM)
Frequency resolution 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel 100 channels + 1 call channel
Ant. impedance 50 ohm unbalanced
Frequency stability +/- 5 ppm
Microphone impedance 2K ohm
Rated voltage 13.8 VDC +/- 15% (11.7-15.8V)
Current Transmit: approx. 10.0A
Receive: approx. 600mA (Max) 400mA (Squelched)
Operating temperature -10dig.C to +60dig.C (+14dig.F to +140dig.F)
Ground Negative ground
Dimensions 142(W) x 40(H) x 174(D) mm
5.58\"(W) x 1.57\"(H) x 6.83\"(D)
Weight Approx. 1.0Kg (35.3oz)
Transmitter
Power output 35W (HI)
20W (MID)
Approx. 5W (LOW)
Modulation Variable reactance
Spurious emission -60 dB or less
Maximum frequency deviation +/- 5 KHz / +/- 2.5 KHz (Narrow mode)
Receiver
Circuitry Double-conversion superheterodyne
Sensitivity -12.0 dBu (0.25uV) or less (12dB SINAD)
Intermediate frequency 1st IF 30.85MHz, 2nd IF 455 KHz
Squelch sensitivity -16.0 dBu (0.1 uV)
Selectivity (-6 dB) 12 KHz or more
6 KHz or more (Narrow mode)
Selectivity (-60 dB) 28 KHz or less
14 KHz or less (Narrow mode)
Audio output 2.0 W (8 ohm, 10% distortion)
