Times Analyzer VHF/UHF

Lebih Lengkap Mengenai Times Analyzer VHF/UHF

Barang Baru

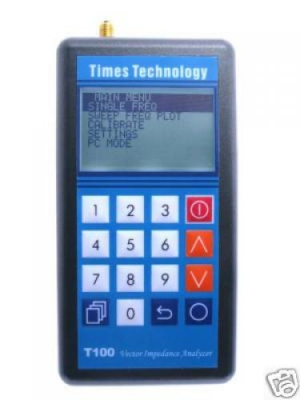

VHF/UHF Handheld Vector Antenna Impedance Analyzer

Main Features:
* Able to distinguish the sign (inductive/capacitive impedance) without frequency shifting and guessing.
* Open/Short/Load calibration with standard 3-term error correction
* Graphical Display (SWR, Z, R, X, S11, Phase Angle)
* Supports USB connection to PC for control & measurement (PC host program included)
* Supports USB firmware update



Specifications:
Frequency Range:
100MHz ~ 170MHz (VHF)
400MHz ~ 470MHz (UHF)
All PLL synthesized

Frequency Resolution: 25KHz

Test Port Connector: SMA (female)

Output Power: > 0dBm (typical)

Output Harmonics: < -30dBc (typical)

Display: 128x64 pixel monochrome LCD with backlight

Dimension: 140mm(length) x 68mm(width) x 25mm(thickness)

Net weight: 130 gram (without batteries)

Power: AA Size Battery x 2

Accessories Included:
Amphenol SMA Open, Short, Load "Standards", one each.
One SMA (male) to PL-259 converter
One SMA (male) to BNC (female) converter
One USB A to mini-B cable
CD-ROM (English Manual, PC host program for XP, USB driver for XP, firmware update tools)
