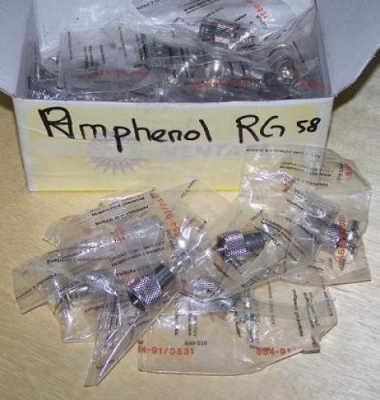

PL Male to RG-58 Amphenol

PL Male to RG-58 Amphenol
Klik pada gambar untuk memperbesar
Harga
Rp 35.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli PL Male to RG-58 Amphenol

Lebih Lengkap Mengenai PL Male to RG-58 Amphenol

Barang Baru
Ready Stock


Amphenol adalah Konector yang terbaik untuk peralatan RF, terbuat dari bahan berkualitas tinggi, dan mudah untuk di Solder, Baik bodynya pun, mudah disolder, sehingga impedansi tetap berada dalam 50 Ohm..

MADE IN USA

Untuk pembelian lebih dari 5 unit, kami akan berikan potongan harga

Sekilas penemuan tentang Amphenol

Invented in the 1930's by an Amphenol engineer named E. Clark Quackenbush, UHF coaxial connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz. Invented for use in the radio industry, UHF is an acronym for Ultra High Frequency because at the time 300 MHz was considered high frequency.

UHF connectors feature a threaded coupling. Because these connectors are low-cost, the impedance is variable.

Features & Benefits

Optional reducing adapters accommodate a wide range of popular coaxial cables

Solder termination types require no special assembly tools

Crimp termination types provide a lower cost installation method

Large-size threaded coupling is rugged design

Non-demanding specifications and low cost

Applications

Antennas Cable Assembly Low Frequency Applications
Public Address Systems CB Radios

UHF Specifications

Electrical
Impedance Non-constant
Frequency Range 0 - 300 MHz
Voltage Rating 500 volts peak

Mechanical
Mating 5/8-24 threaded coupling
Cable Affixment Braid solder, set screw, clamp and crimp

Material
Male Contact Brass with silver plating
Female Contact Beryllium copper with silver plating
Bodies Brass and die cast zinc
Other Metal Parts Brass
Plating Nickel and silver
Insulators TFE, copolymer of styrene, polystyrene, mica-filled phenolic and PBT polyester or equivalent

Environmental
Temperature Range Mica-filled phenolic insulators: -55°C to +149°CCopolymer of styrene and polystyrene: -55°C to +85°CTFE insulators: -65°C to +165°C
Weatherproof Except as noted, all UHF series are non-weatherproof
