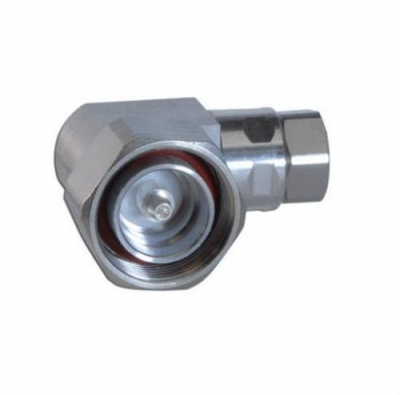

ANDREW F4PDR-C

ANDREW F4PDR-C
Klik pada gambar untuk memperbesar
Harga
Rp 250.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli ANDREW F4PDR-C

Lebih Lengkap Mengenai ANDREW F4PDR-C

BRAND NEW


General Specifications
Interface 7-16 DIN Male
Body Style Right angle
Brand HELIAX®
Mounting Angle Right angle

Electrical Specifications
Connector Impedance 50 ohm
Operating Frequency Band 0 – 5200 MHz
Cable Impedance 50 ohm
3rd Order IMD -120 dBm @ 910 MHz
3rd Order IMD Test Method Two +43 dBm Carriers
RF Operating Voltage, maximum (vrms) 884.00 V
dc Test Voltage 2500 V
Outer Contact Resistance 1.50 mOhm
Inner Contact Resistance 0.80 mOhm
Insulation Resistance, minimum 5000 MOhm
Average Power 1.0 kW @ 900 MHz
Peak Power, maximum 15.60 kW
Insertion Loss, typical 0.05 dB
Shielding Effectiveness -110 dB

Outline Drawing

Click on image below to enlarge.




Mechanical Specifications
Outer Contact Attachment Method Crush-flare
Inner Contact Attachment Method Captivated
Outer Contact Plating Trimetal
Inner Contact Plating Gold
Attachment Durability 25 cycles
Interface Durability 500 cycles
Interface Durability Method IEC 169-4:9.5
Connector Retention Tensile Force 890 N | 200 lbf
Connector Retention Torque 5.42 N-m | 48.00 in lb
Insertion Force 200.17 N | 45.00 lbf
Insertion Force Method IEC 169-1:15.2.4
Pressurizable No
Coupling Nut Proof Torque 24.86 N-m | 220.00 in lb
Coupling Nut Retention Force 1000.85 N | 225.00 lbf
Coupling Nut Retention Force Method MIL-C-39012C-3.25, 4.6.22

Dimensions
Nominal Size 1/2 in
Diameter 40.34 mm | 1.59 in
Length 60.96 mm | 2.40 in
Right Angle Length 45.72 mm | 1.80 in
Weight 207.36 g | 0.46 lb
Width 31.75 mm | 1.25 in

Environmental Specifications
Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Water Jetting Test Mating Mated
Water Jetting Test Method IEC 60529:2001, IP66
Moisture Resistance Test Method MIL-STD-202F, Method 106F
Mechanical Shock Test Method MIL-STD-202F, Method 213B, Test Condition C
Thermal Shock Test Method MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C
Vibration Test Method IEC 60068-2-6
Corrosion Test Method MIL-STD-1344A, Method 1001.1, Test Condition A

Standard Conditions
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F

Return Loss
Frequency Band VSWR Return Loss (dB)
0–960 MHz 1.02 40.00
960–1700 MHz 1.04 35.00
1700–2300 MHz 1.08 28.00
2300–3000 MHz 1.15 23.00

Regulatory Compliance/Certifications
Agency Classification
RoHS 2002/95/EC Compliant by Exemption
China RoHS SJ/T 11364-2006 Above Maximum Concentration Value (MCV)
