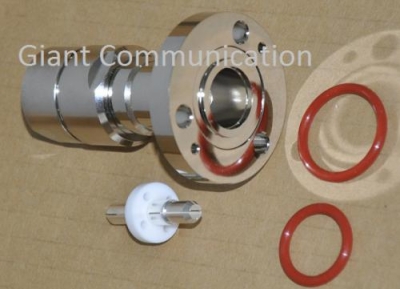

Giant EIA 7/8 Flange

Lebih Lengkap Mengenai Giant EIA 7/8 Flange

Barang Baru
Ready Stock



Interface
According to 7/8In EIA Flange

Electrical
Characteristic Impedance 50 ohm
Operating Frequency Range DC-5GHz
VSWR ≤1.15@DC-3000MHz
Dielectric Withstanding Voltage ≥6000V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Average Power 2.3KW@900MHz
Peak Power Maximum 90KW
Contact Resistance Center Contact ≤1.5mΩ

Outer Contact
Mechanical
Durability Mating cycles ≥50
Material and plating　　　　　　　　　　　　　　Material　　　　　　　　　　　　　Plating
Body Brass　　　　　　 Ni
Isulator PTFE　　　　　　　　 －
Center conductor Phosphor bronze　 Ag
Cupling Nut Brass Ni
Other Parts Brass Ni
Gasket Silicone Rubber －
Bolts and Washer Stainless Steel －
Environmental
Temperature Range -40℃～+85℃
Weatherproof Rate IP 67
RoHsCompliant

This Connector are made by CNC Precision,
it does same performance by quality connector like Andrew, RFS , Myat and many more
