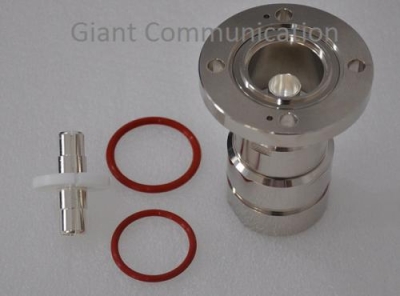

Giant 1-5/8EIA Flange

Giant 1-5/8EIA Flange
Klik pada gambar untuk memperbesar
Harga
Rp 2.250.000,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Giant 1-5/8EIA Flange

Lebih Lengkap Mengenai Giant 1-5/8EIA Flange

Barang Baru
Ready Stock

Interface

According to 1-5/8" EIA Flange

Electrical
Characteristic Impedance 50 ohm
Operating Frequency Range DC-5GHz
VSWR ≤1.15@DC-3000MHz
Dielectric Withstanding Voltage ≥6000V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Average Power 2.3KW@900MHz
Peak Power Maximum 90KW
Contact Resistance Center Contact ≤1.5mΩ
Outer Contact ≤1.5mΩ

Mechanical
Durability Mating cycles ≥500
Material and plating
Material              Plating

Body Brass       Ni
Insulator PTFE         -
Center conductor Phosphor bronze  Ag
Coupling Nut Brass Ni
Other Parts Brass Ni
Gasket Silicone Rubber -
Bolts and Washer Stainless Steel -
Environmental
Temperature Range -40℃~+85℃
Weatherproof Rate IP 67
RoHs Compliant
