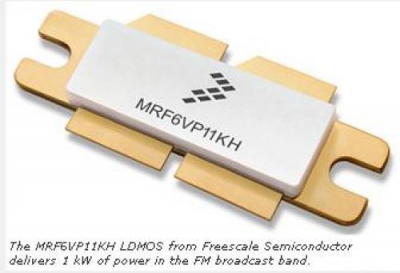

MRF6VP11KH 1000 Watt Mosfet

Lebih Lengkap Mengenai MRF6VP11KH 1000 Watt Mosfet

The MRF6VP11KHR6 is designed primarily for pulsed wideband applications with frequencies up to 150 MHz. Device is unmatched and is suitable for use in industrial, medical and scientific applications.

Features

* Typical Pulsed Performance at 130 MHz: VDD = 50 Volts, IDQ = 150 mA, Pout = 1000 Watts Peak (200 W Avg.), Pulse Width = 100 µsec, Duty Cycle = 20%

Power Gain: 26 dB
Drain Efficiency: 71%

* Capable of Handling 10:1 VSWR, @ 50 Vdc, 130 MHz, 1000 Watts Peak Power
* Characterized with Series Equivalent Large-Signal Impedance Parameters
* CW Operation Capability with Adequate Cooling
* Qualified Up to a Maximum of 50 VDD Operation
* Integrated ESD Protection
* Designed for Push-Pull Operation
* Greater Negative Gate-Source Voltage Range for Improved Class C Operation
* RoHS Compliant
* In Tape and Reel. R6 Suffix = 150 Units per 56 mm, 13 inch Reel
