Dummy Load 80 Watt 2700 Mhz

Lebih Lengkap Mengenai Dummy Load 80 Watt 2700 Mhz

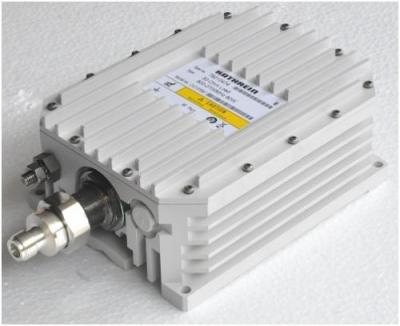

Kathrein 78210474 ,
Brand New


• Designed as 50-Ohm termination wherever improved intermodulation performance compared to standard loads is required
• Excellent intermodulation performance
• Suitable for indoor or outdoor applications


Specifications:

Frequency range : 800-2700Mhz
Impedance : 50 ohms
VSWR : < 1.12:1
Input power : 80 Watt , ( )
Temperature range : -40° to +55° C
Connector : 7-16 DIN female (long neck) + N Female ( Optional Adapter )
Weight 6.8 lb : (3.1 kg)
Packing Size : (377 x 232 x 189 mm)


Note :
The RF port connector should always point downwards if mounted outdoors.
