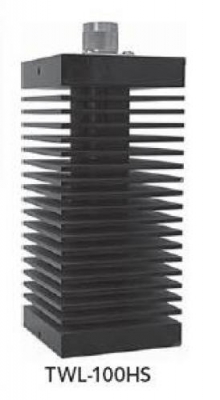

Telewave TWL-100HS

Telewave TWL-100HS
Klik pada gambar untuk memperbesar
Harga
Rp 1,00
Berat
1 gram
Dimensi Produk
0
Ketersediaan Barang
1
Beli Telewave TWL-100HS

Lebih Lengkap Mengenai Telewave TWL-100HS

Barang Baru
Ready Stock

100W Continuous, (200W 30mins) , 500W 2min , 1000W 30sec

TELEWAVE COAXIAL RF TERMINATIONS

Telewave coaxial loads feature extremely low VSWR. Applications include hybrids, isolators, power monitors, wattmeters, and coaxial line terminations.

Telewave loads are custom machined to withstand bench or field use. The conservative power rating provides substantial overload protection. Unlike liquid dielectric loads, these dry dielectric loads can be operated in any position.

All connectors have gold-plated centre pins for optimum conductivity. Quick-change connectors are standard on Telewave loads from 50 Watts and up

The TWL-100 Bench Load is ideal as a general purpose termination. It is perfectly suited for terminating the Model 44 Series Broadband Wattmeters, or any other application requiring a very low VSWR, 50 Ohm termination.

For added flexibility, straight or elbow-type male-male adaptors are available.

FEATURES

- Extremely Low VSWR

- CW Power Ratings to 100 Watts

- Dry Dielectric

- Broad Frequency Range

- Rugged Construction

- Type N or UHF, M/F connectors

SPECIFICATIONS

Model Number TWL-100HS

Nominal Impedance 50 Ohms

Max CW Average Power 100W Continuous (200W 30mins) , 500W 2min , 1000W 30sec

Frequency 0 - 2500MHz

Max VSWR (N connector) 1:1.05

50% Overload Rating 2 minutes

Temperature Rating 40°C max ambient 100% of rated power

95°C max ambient 50% of rated power

Dimensions (H x Diameter) 57mm 203 x 89mm - -

Dimensions (H x W x D) 178 x 70 x 70mm 165 x 90 x 165mm

Weight 1.1Kg
