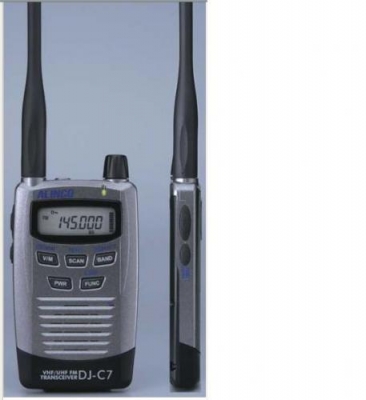

DJ-C7 Dual Band

DJ-C7 Dual Band
Klik pada gambar untuk memperbesar
Rp 1.775.000,00
1 gram
Dimensi Produk
Ketersediaan Barang
Beli DJ-C7 Dual Band

Lebih Lengkap Mengenai DJ-C7 Dual Band

Ready Stock
Barang Baru

New Generation Credit Card Sized VHF/UHF DUAL-BAND Micro Transceiver

Frequency Coverage: T/USA model
TX/RX: 144-147.995MHz/420-449.995MHz
RX: 88.1-107.995/108-173.995/380-511.995MHz AM/FM/WFM

E/EU model
TX/RX: 144-145.995MHz/430-439.995MHz
RX: 87.5-107.995MHz WFM
Modulation: TX: 16k0F3E (FM)
RX: WFM/FM/AM (where permitted)

Receiver System: Double Conversion Super-heterodyne (WFM: Single CSH)
Channel Step: Auto/5/6.25/8.33/10/12.5/15/20/25/30/50/100/125/200KHz
Memory Channels: 200ch with 5 PS pairs, 1 priority and 1 auto-repeater pair
Tone Encoder: 39 tone encoder standard
Tone Decoder: 39 tone decoder standard
Offset range: 0 ~ 99.995MHz
Deviation: +/- 5KHz
TX Output: 300mW with EBP58N / 500mW with 6Vdc power-source
TX Spurious emissions: less than -60dB
Frequency Stability: -7 to +3ppm (-10 ~ + 50 degrees C.)
Sensitivity (12dBSINAD): Ham-bands VHF: -14dBu UHF: -12dBu / WFM -3dBu average
Selectivity: +/-12KHz or more(-6dB) +/-35KHz or less (-60dB)
I.F.: 1st: 50.85MHz(WFM 10.7MHz) 2nd: 450KHz
AF output: 100mW or more (MAX), 90mW or more (10% dist. 8 ohm) at 6.0Vdc
Power Supply Requirements: 3.7Vdc EBP58N / 3.7 - 6.0Vdc external power source
Current Drain (approx) : TX: 320mA / RX (squelched): 70mA / RX (BS-on): 19mA
Operating Temperature: -10 ~ +60 degrees C, 14 ~ 140 degrees F
Dimensions: 56(W) x 96(H) x 14.5(D)mm (without projections)
or 2.28 x 3.78 x 0.57 inches

Weight: approx. 102g or 3.59oz antenna/EBP58N inclusive
