Repeater System UHF / VHF
Untuk Frequency 136-174Mhz atau 400-480Mhz

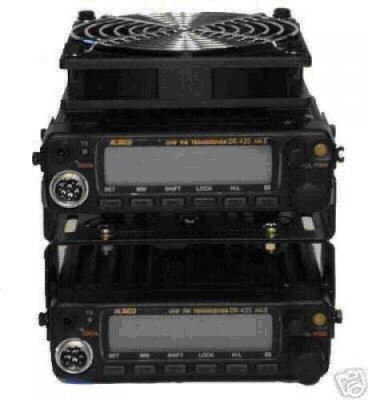

This package is for 2 sets of Brand New Alinco DR-435MKII (T) Repeater with a Brand New controller and Repeater Interface, 35 Watts 440 MHz for mobile or fixed station operation. Professionally assembled and tested. Clean, clear audio, a great addition to the Amateur radio repeater world. CTCSS or DCS tone capability. Includes 2- DR-435TMKII mobiles, repeater interface, power cord, cooling fan (ball bearing), bracket and manual.

No programming needed, just dial in your RX and TX frequencies and tones if needed, select the power level you want and your on the air. MARS modifiable (on request).

"Alinco Authorized Sales Center"

What are included in the package ??

2- DR-435MKII Mobiles with all accessories included ( DTMF Mic. and etc.)
(430-449.995MHz TX)

(350-511.995MHz RX)

Repeater Interface (, Roger Beep by DR-435, Hang Timer - TOT, Repeater Delay)
Cooling Fan - Thermal Controlled / Transmit controlled ( based on request )
Power Cord
Bracket
Manual
Alinco 3 Yr Factory Warranty on DR-435T Mobiles

Features of DR-435 ? MKIII

Revised NEW circuit to be compliant to RoHS/Lead-free order in EU.
Voice-only FXE-version available (European model only, EJ-41U/47U not usable).
EJ-41U internal TNC board is available as an option for 1200/9600bps packet
35 watts, H/M/L power settings
100 memory channels
Front panel data port
Rear panel DSUB9 computer connection
No need to remove mic for packet operation
Ignition key on/off feature
CTCSS, DCS encode+decode, DTMF encode and Tone-burst are all standards
Clean, clear Alinco audio
Super-wide 7 character alphanumeric display
Wide and narrow FM modes (16K0 & 8K50F3E)
Theft alarm feature
A large, palm-fitting commercial-grade backlit microphone with a metal connector (not a modular plug) as well as direct frequency input and direct multi-function access such as monitor, call channel, power setting, memory to VFO plus more!
Stays in mode you select (voice/packet) through
power off cycles
Ten autodial memories
and more....at Low Alinco price!

Specifications
Genaral
Frequency range TX: 430.000 - 449.995 MHz
RX: 350.000 - 511.995MHz

Operating mode 16K0F3E (FM)/8K50F3E (Narrow-FM)
Frequency resolution 5, 8.33, 10, 12.5, 15, 20, 25, 30, 50 KHz
Memory channel 100 channels + 1 call channel
Ant. impedance 50 ohm unbalanced
Frequency stability +/- 5 ppm
Microphone impedance 2K ohm
Rated voltage 13.8 VDC +/- 15% (11.7-15.8V)
Current Transmit: approx. 10.0A
Receive: approx. 600mA (Max) 400mA (Squelched)
Operating temperature -10dig.C to +60dig.C (+14dig.F to +140dig.F)
Ground Negative ground
Dimensions 142(W) x 40(H) x 174(D) mm
5.58"(W) x 1.57"(H) x 6.83"(D)
Weight Approx. 1.0Kg (35.3oz)
Transmitter
Power output 35W (HI)
20W (MID)
Approx. 5W (LOW)
Modulation Variable reactance
Spurious emission -60 dB or less
Maximum frequency deviation +/- 5 KHz / +/- 2.5 KHz (Narrow mode)
Receiver
Circuitry Double-conversion superheterodyne
Sensitivity -12.0 dBu (0.25uV) or less (12dB SINAD)
Intermediate frequency 1st IF 30.85MHz, 2nd IF 455 KHz
Squelch sensitivity -16.0 dBu (0.1 uV)
Selectivity (-6 dB) 12 KHz or more
6 KHz or more (Narrow mode)
Selectivity (-60 dB) 28 KHz or less
14 KHz or less (Narrow mode)
Audio output 2.0 W (8 ohm, 10% distortion)
